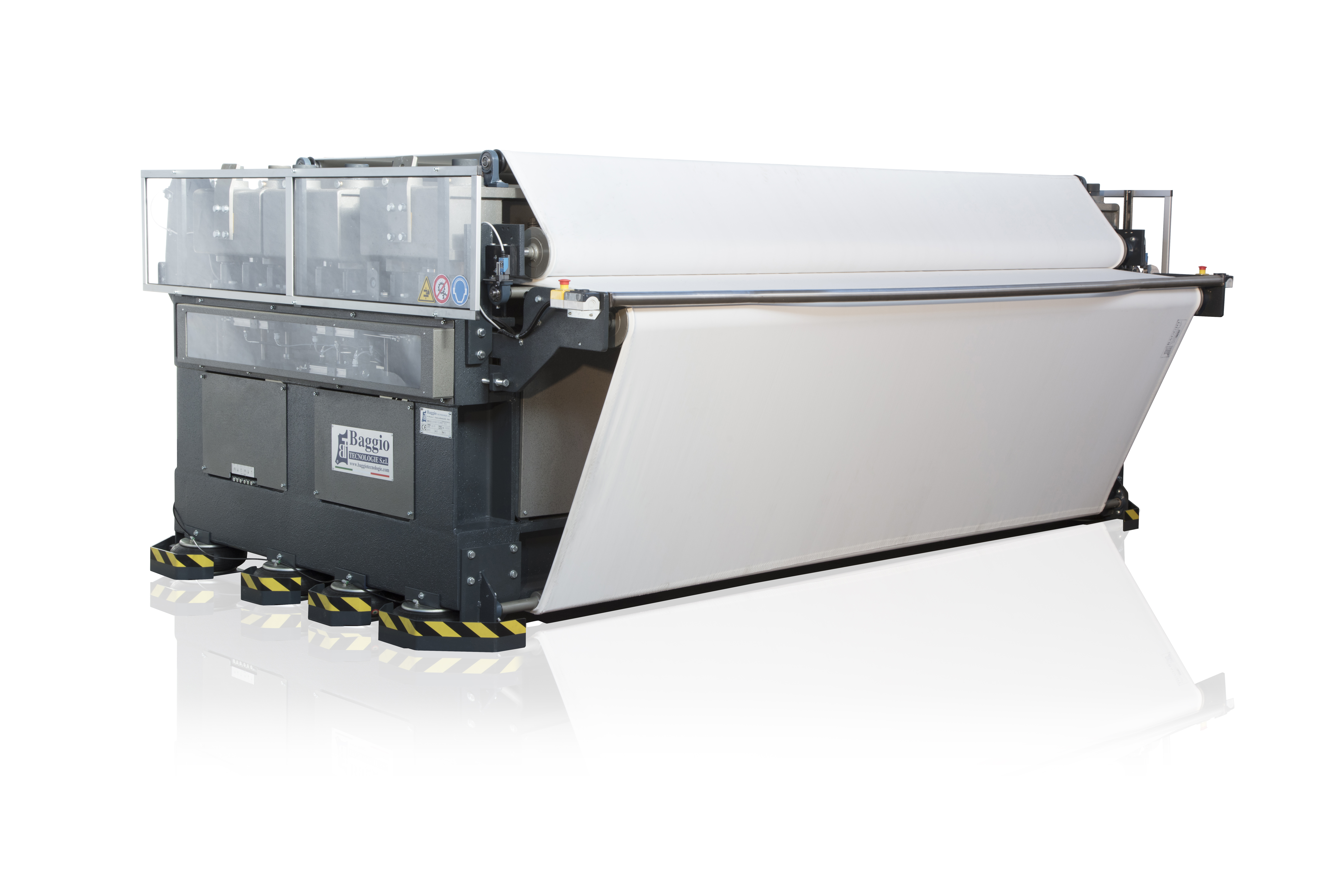

Blue Stretching 3/S - 4/S - T4

Ti trovi qui: Machinery » Staking Machines » Staking Machines for wet » Blue Stretching 3/S - 4/S - T4

Machine with 3 or 4 heads designed to open thinner hides in the wet phase after winding. The skins are opened in all their surface uniforming the thickness and thanks to the greater opening of the fibers the subsequent drying process is facilitated.

  • 3 or 4 staking heads with special anti-corrosion elements
  • Two beating jaws
  • High frequency vibrating patented movement BAGGIO TECNOLOGIE
  • Centralized lubrication
  • Manual or automatic adjustment of the heads complete with PLC and TOUCH screen full connect (4.0)
  • Special water resistant transport belts
  • "R" regulation (differential pneumatic regulation introduced by BAGGIO since 1996)
  WIDTH (mm) LENGTH (mm) HEIGTH (mm) KW
3200 3850 2900 1530 21
3400 4050 2900 1530 21
3600 4250 2900 1530 21




Bearing temperature monitoring sensors




Special staking elements




Special de-dusting system complete with 2-3  aspirator bars and dust collector




New seamless transport belts





Patented "Baggio Tecnologie" movement




Automatic greasing




Electrical panel complete with touch screen and modem for remote assistance. Possibility of connection and remote communication (pc, ipad, smartphone)




Humidification system for programmable work sheets





Electric automatic regulation

(left and right side)




Heads pressure by inflatable sectors (since 1996)




Clear indication of the input table of the selected pressure increase zones





Platform




Soundproof cabin
