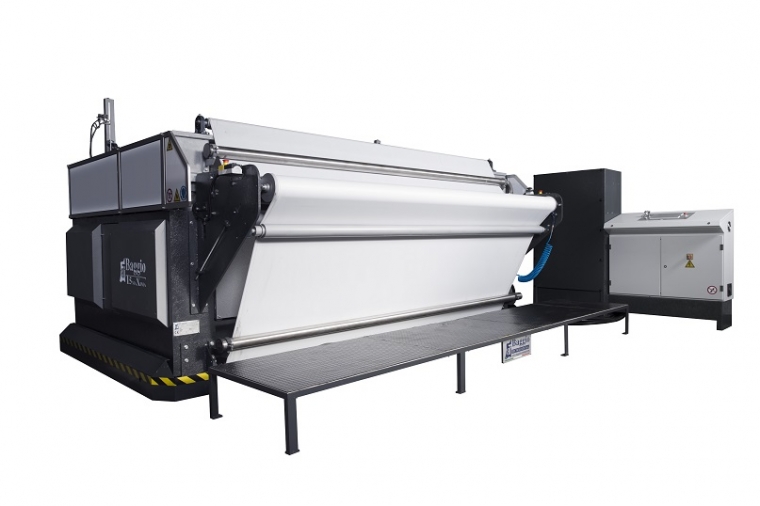

T5 Maxima

Machines with five heads, designed to adapt to the most recent technological innovations in the tanning sector.

Completely electric, adaptable to the custo­mer’s needs by full programming of staking process, the machines of this series represent the most complete and advanced technologya modern tannery can choose for the staking phase of automotive, furniture and footwear leather interfaceable with the NEW AUTOMATIC SOFTNESS TESTER BAGGIO TECNOLOGIE.

• Double synchronized beating jaws
• Antistatic system
• Automatic greasing system
• High vibrating frequency
• Automatic independent adjustment of working pressures
• Touch screen with remote assistan­ce 4.0
• De-dusting system
• Humidification system
• New system for transport belts tensioning
• Special elements on the last head to remove the marks

OPTIONAL

       -“R” regulation (pneumatic differen­tiated automatic regulation)

       -Soundproofing cabin

       -Platforrn

       -Automatc belt tensioning system

Bearing temperature monitoring sensors

Special perching elements

Special suction system complete with 2-3 suction bars and dust collector

New seamless carpets

Patented Baggio Tecnologie movement

Automatic greasing

Electrical panel complete with touch screen and modem for remote assistance. Possibility of connection and remote communication (pc, ipad, smartphone)

Humidification system for programmable work sheets

Regolazione elettrica indipendente lato dx e lato sx

Clear indication of the input table of the selected pressure increase zones

Heads for inflatable sectors (since 1996)

Platform

Soundproof Cabin
