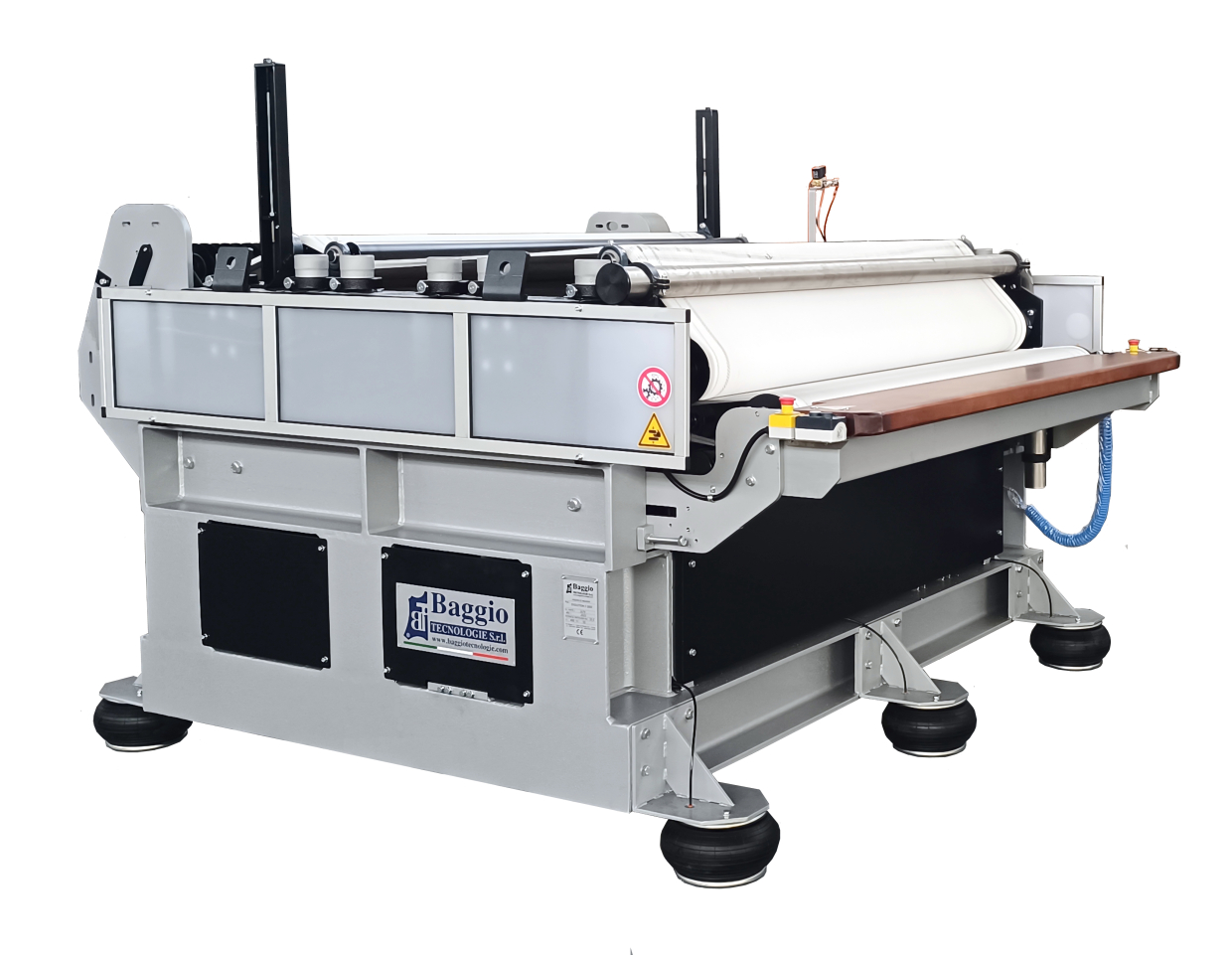

Evolution 3

Ti trovi qui: Machinery » Staking Machines » Staking machines for dry » Evolution 3

1800 - 2400 - 3200 - 3400 mm

Machine very easy to use, sui­table for processing leathers of less than 1.6 mm thickness with extremely simple maintenance.

  • Manual adjustment of working pressure
  • Antistatic system
  • Centralized greasing

OPTIONAL

     - De-dusting system

     - Humidification system

     - “R” Regulation (pneumatic differen­tiated heads adjustment regulation)

     - Soundproof cabin

     - Platform



MODEL WIDTH (mm) LENGHT (mm) HEIGHT (mm) KW
1800 2500 2750 1530 9,5
2400 3100 2750 1530 11,5
3200 3850 2750 1550 13,5
3400 4050 2750 1550 13,5




Bearing temperature monitoring sensors




Special staking elements




Special de-dusting system complete with 2-3  aspirator bars and dust collector




New seamless transport belts





Patented "Baggio Tecnologie" movement




Automatic greasing




Electrical panel complete with touch screen and modem for remote assistance. Possibility of connection and remote communication (pc, ipad, smartphone)




Humidification system for programmable work sheets





Electric automatic regulation

(left and right side)




Heads pressure by inflatable sectors (since 1996)




Clear indication of the input table of the selected pressure increase zones





Platform




Soundproof Cabin
