Evolution 4/S

Ti trovi qui: Machinery » Staking Machines » Staking machines for dry » Evolution 4/S

1800 - 2400 - 3200 - 3400 mm

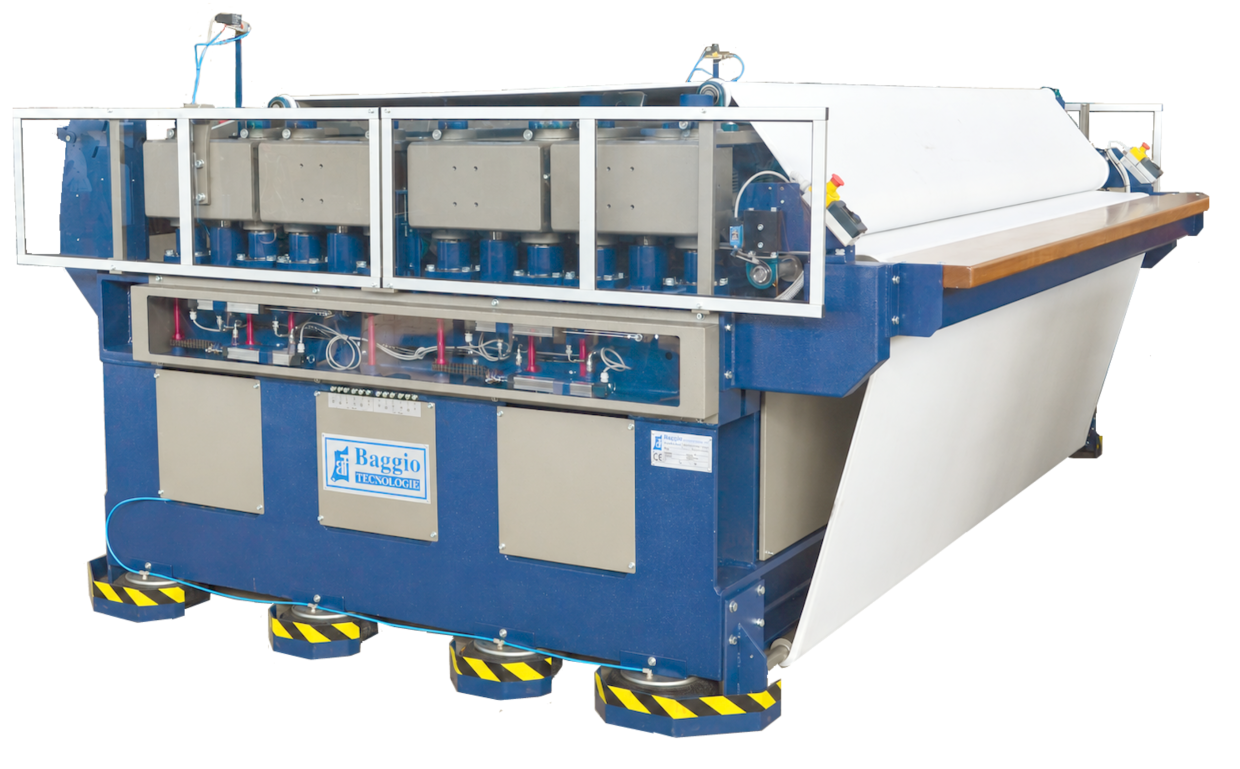

Staking- stretching machine withfour heads designed for large-scale production of all types of leather: automotive, upholstery, leather goods, goat and sheep leather.

Configurable for all crust/ finished staking stages.

  • Double synchronized beating jaws
  • Manual adjustment of working pressures
  • Antistatic system
  • Centralised greasing
  • High vibrating frequency

OPTIONAL

      -Independent automatic adjustment

      -Touch screen with remote assistan­ce 4.0

      -De-dusting system

      -Humidification system

     -“R” regulation (pneumatic differen­tiated automatic regulation)

     -Soundproof cabin

     -Platforrn



MODEL WIDTH (mm) LENGTH (mm) HEIGHT (mm) KW
1800 2500 2900 1530 13
2400 3100 2900 1530 17
3200 3850 2900 1530 21
3400 4050 2900 1530 21




Bearing temperature monitoring sensors




Special staking elements




Special de-dusting system complete with 2-3 aspirator bars and dust collector




New seamless transport belts





Patented "Baggio Tecnologie" movement




Automatic greasing




Electrical panel complete with touch screen and modem for remote assistance. Possibility of connection and remote communication (pc, ipad, smartphone)




Humidification system for programmable work sheets





Electric automatic regulation

(left and right side)




Heads pressure by inflatable sectors (since 1996)




Clear indication of the input table of the selected pressure increase zones





Platform




Soundproof Cabin
