Evolution 3/S

Ti trovi qui: Machinery » Staking Machines » Staking machines for dry » Evolution 3/S

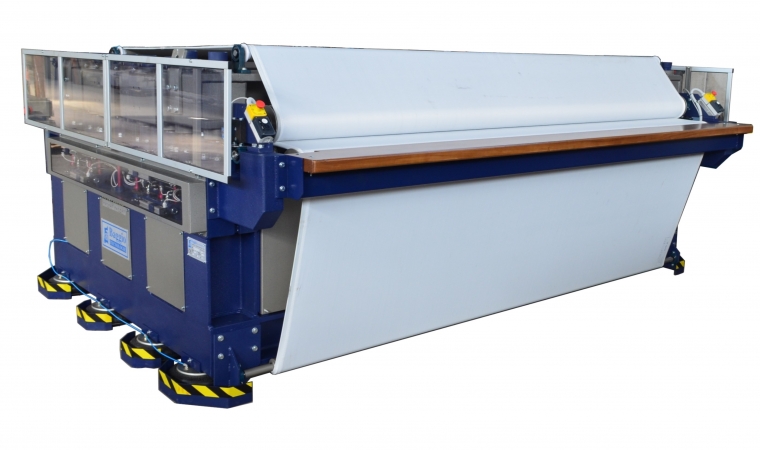

Three heads staking machine designed for all types of leather: automotive, furniture, shoes, handbag, calf, crust and finished.

3 heads of staking with special differential plates configuration

2 beating jaws

High staking frequency patented movement BAGGIO TECNOLOGIE

Antistatic system

De-dusting system OPTIONAL

Centralized greasing

Manual or automatic adjustment regulation by touch screen (full connect system"R" system regulation (inflatable heads adjustment regulation introduced by BAGGIO since 1996)



  WIDTH (mm) LENGTH (mm) HEIGHT (mm) KW
1800 2500 2900 1530 13
2400 3100 2900 1530 17
3200 3850 2900 1530 21
3400 4050 2900 1530 21




Bearing temperature monitoring sensors




Special perching elements




Special suction system complete with 2-3 suction bars and dust collector




New seamless carpets





Patented Baggio Tecnologie movement




Automatic greasing




Electrical panel complete with touch screen and modem for remote assistance. Possibility of connection and remote communication (pc, ipad, smartphone)




Humidification system for programmable work sheets





Regolazione elettrica indipendente lato dx e lato sx




Heads for inflatable sectors (since 1996)




Clear indication of the input table of the selected pressure increase zones
