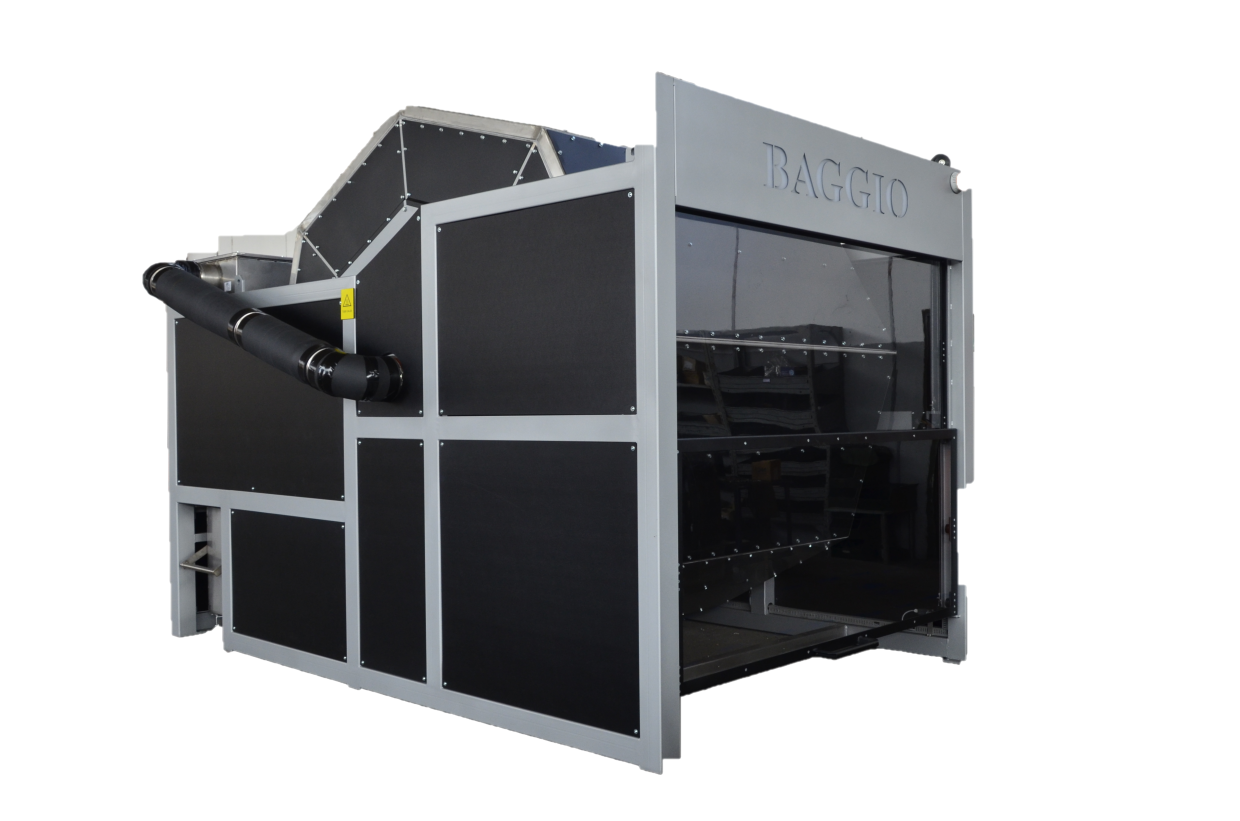

Octagonal milling drum NA 3000 x 2000

These equipments represent the best expression of the "leather milling system" in tannery.

The OCTAGONAL shape (patented) represents the evolution of the traditional round drum greatly increasing the performances.

By following the models, these machines can be equipped with automatic doors, automatic unloading, chemical injection, DRY system (patented), and MMS system (patented).











  WIDTH (mm) LENGTH (mm) HEIGHT (mm) LOAD CAPACITY (kg) INTERNAL VOLUME (m3) Kw
NA 3000x2000 3100 3500 4000 1400 12,5 30
EXA 3500 x 2500 4050 900 4500 2500 23 48




Drum with manual model drain N 1800 x 900 - 2500 x 1700 - 3000





N 1800 x 900




N 2500 x 1700












  WIDTH (mm) LENGTH (mm) HEIGHT (mm) LOAD CAPACITY (kg) INTERNAL VOLUME (m3) Kw
N 1800x900 2100 2800 2400 150 2,1 12
N 2500x1700 2800 3900 3100 900 7,5 21
N 3000x2000 3100 3100 3650 1400 12,5 30




Automatic loading system for milling drums

Modular and flexible system that allows a drastic reduction of the loading times of the drums.

It presents an improvement in terms of internal logistics due to the presence of  one only loading point.

The solutions may vary according to the customer's needs.
